Comfortable and simple operation
Low position operating knobs 360 degree rotatable viewing head, according with ergonomical design, reduce the fatigue from long-time use.
Stable frame with outstanding design
Metal casting frame with corrosion and wear resistance technology, ensures a solid and durable microscope.Built-in magnet for hexagonal wrench keeping, small designs are the most practical.
Front magnification display
With built-in sensor in nosepiece, the objective magnification on using is visible from the front plate.
Intelligent ECO system
With environmental and economic ECO infrared sensing system, the microscope is preset to be shutdown when there is no operator within limited time.
For different observation

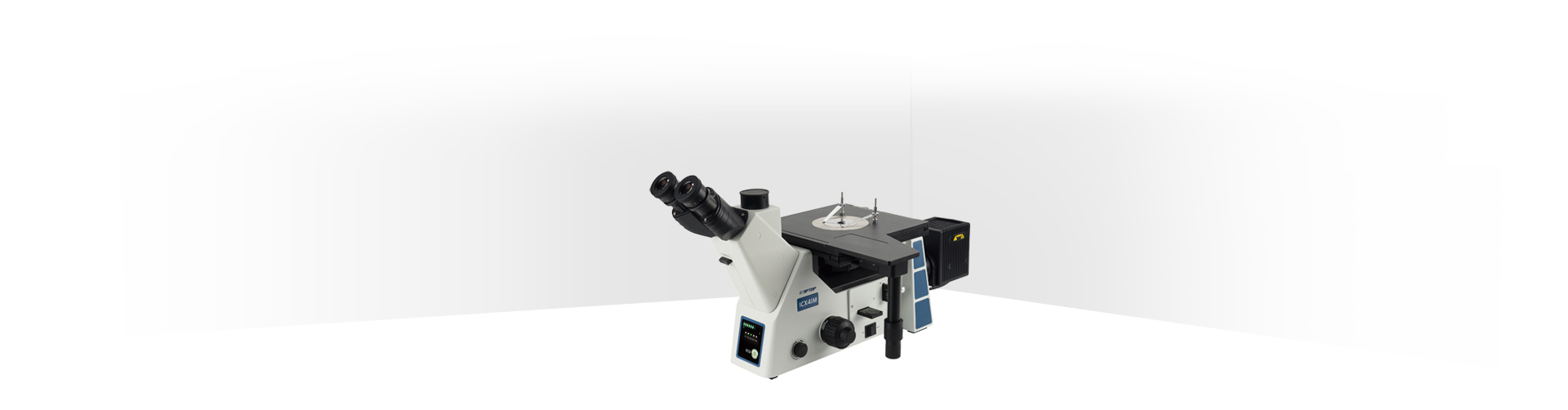

Supporting for bright field, dark field, polarizing and differential interference contrast, ICX41M is applied for different researches.
|
Optical system |
Infinity color correct optical system |
|
Viewing head |
45 degree inclined trinocular viewing head, 360 degree rotatable; interpupillary distance 50-75mm, binocular:trinocular=100:0 or 0:100 |
|
Eyepiece |
High eye point wide field plan eyepiece PL10X22mm, with adjustable diopter, reticle attachable |
| High eye point wide field plan eyepiece PL10X22mm, with adjustable diopter, reticle attachable | |
|
Objective |
Long working distance plan achromatic metallurgical objectives 5X, 10X, 20X, 50X, 100X |
| Long working distance bright & dark field plan achromatic metallurgical objectives 5X, 10X, 20X, 50X, 100X | |
|
Nosepiece |
Inward quintuple bright field nosepiece (DIC slot), with built-in magnification sensor |
| Inward quintuple bright & dark field nosepiece (DIC slot), withbuilt-in magnification sensor | |
|
Frame |
Reflected frame low-position coaxial focusing system, coarse range 9mm (up 6.5mm, down 2.5mm), fine precision 0.002mm with upper limit and tension adjustment; with switch for bright and dark field; with variable field diaphragm and aperture |
| diaphragm, both center adjustable; with slots for filters and polarizing kit; with light intensity indicator; with infrared induction; with magnification display | |
|
Illumination |
External power adapter, input 100V-240V, output 15V13.4A, lightintensity adjustable |
|
Stage |
Three layers rackless stage, size: 240mm (W) X 250mm (L), moving range: 50X 50mm; low-position handle knob |
|
Camera adapter |
0.35X, 0.5X, 0.65X, 1X focusing C-mount |
|
Others |
Polarizer, fixed analyzer, 360 degree rotatable analyzer, DIC attachment, filters, high precision micrometer |
