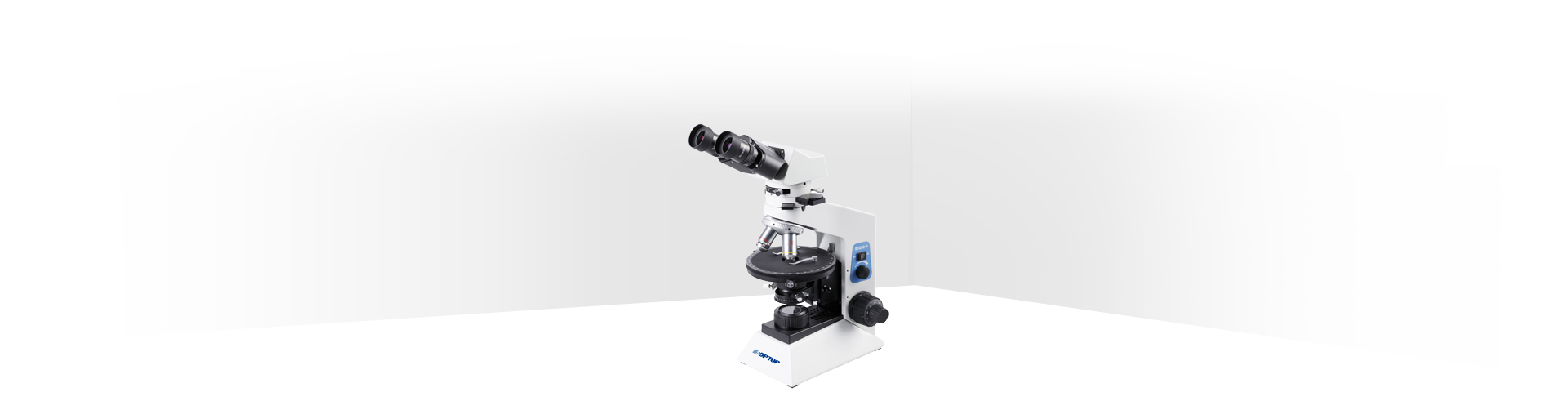

This series microscope is a universal-type polarizing microscope, designed for teaching and conventional using.
Plan destressing objectives provide excellent image and high definition.
Professional metal rotary stage, particularly craftwork,wear-resistant and resist ing corrode. Smooth rotating, comfortable operation, with locking device, very easy to use.
Koehler illuminator systems, wide-range voltage, effectively protect and extend the life of bulbs.
Bertrand lens using the handle rotating structure, circular focus, more convenient and simple operation, reliable performance.
Widely used in component analysis and identification on on a variety of mineral specimens and sample slices under polarized light.
|
Optical system |
Color corrected infinity optical system |
|
Viewing head |
Gemel type binocular head，30°inclined, 360° rotatable, inter-pupillary adjustment range:54mm to 75mm, diopter adjustment of range(±5mm) |
| Gemel type trinocular head, fixed light split ratio, binocular:trinocular =80%:20% | |
| Gemel type digital viewing head | |
|
Eyepiece |
High eyepoint wide field plan eyepiece PL10X/18、High eyepoint wide field plan eyepiece with reticle PL10X/18r |
| High eyepoint wide field plan eyepiece PL10X/20 | |
| High eyepoint wide field plan eyepiece with gridding PL10X/18G | |
| High eyepoint wide field eyepiece PL15X/13 | |
| High eyepoint wide field eyepiece PL20X/10 | |
|
Objective |
Plan destressing objective 4X,10X,20X,40XS,60XS |
| Achromatic objective 4X,10X,20X, 40XS,60XS | |
|
Nosepiece |
Reversed quadruple nosepiece |
|
Focus |
Coaxial focus system with tension adjustable,coarse:28mm per rotation, |
|
Stage: |
Dia.160mm circular stage, 360°rotatable;1° increments ，a does value of vemier 6'; With locking devices |
| Special metal composing, particularly craftwork,wear-resistant and resisting corrode, with micrometer:0.01mm increments. | |
|
Illuminator |
Koehler illumination: wide-range voltage 90-240V, 6V/20W halogen lamp precentered and with continuous intensity control |
| Koehler illumination: wide-range voltage 90-240V, 3W single LED bulb, precentered and with continuous intensity control | |
|
Condenser |
Koehler illuminator , destressing Abbe condenser N.A.1.25， adjustable center |
|
Intermediate tube |
Built-in analyser, 90° rotary and can shift out the optical way; Bertrand lens |
|
Polarizer |
360°rotatable，0，90，180，270 four type graduations |
|
Analyser |
360°rotatable，2° increments ，a does value of vemier 6' |
|
Compensator |
Gyps1λ (￠18mm, optical path difference 551nm) |
| Mica1/4λ(￠18mm, optical path difference 147.3nm) | |
| Quartz Wedge(12X28mm, Ⅰ-Ⅳ) | |
|
Accessories |
Stage mobile ruler 30*40mm |
| Filters(yellow/blue/green/neutral) | |
| Photo tube(with PK mount), 3.2X photo eyepiece | |
| 0.35X/0.5X C-mount adapter | |
| Dark field sliders(Used for 4X-40X objective under Koehler illumination) |
