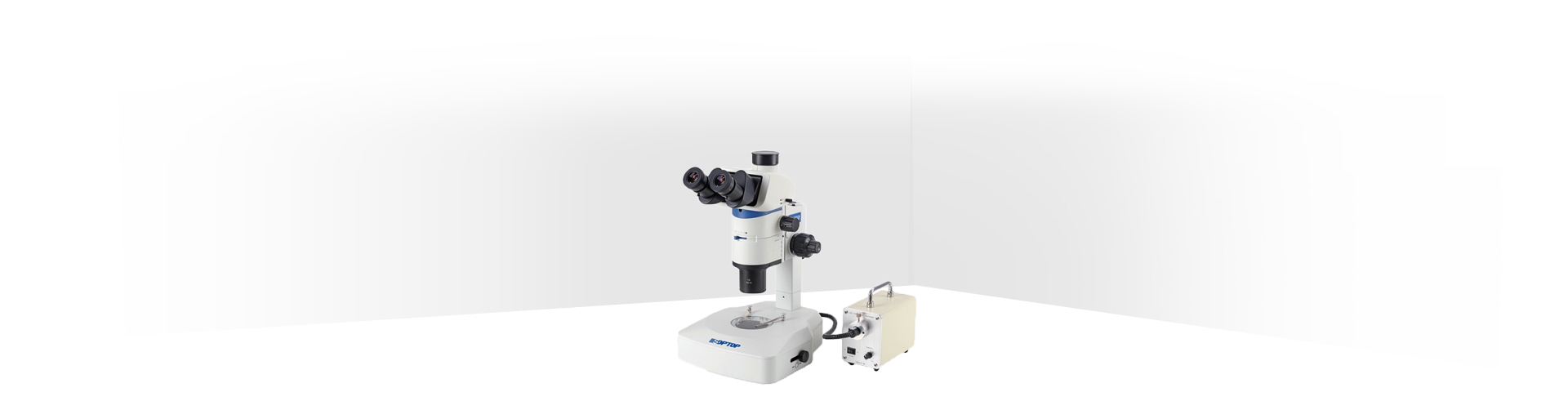

SZX12 Parallel Light Zoom Stereo Microscope

 >Products>Industrial Inspection Microscope>Stereo Microscope

  • Product introduction
  • Technical specifications
  • Download
  • Sales contact

Stereo microscope is importantly applied in industry detection and life science. Based on Galileo optical system and man-machine engineering, SZX12 presents a real and perfect micro-image with easy operation, meets the research demands of biomedicine, microelectronics and semiconductor.


Tilting viewing head for comfortable operation
SZX12 with tilting viewing head from 5 to 45 degree, can be flexibly adjusted for different operators with different posture.

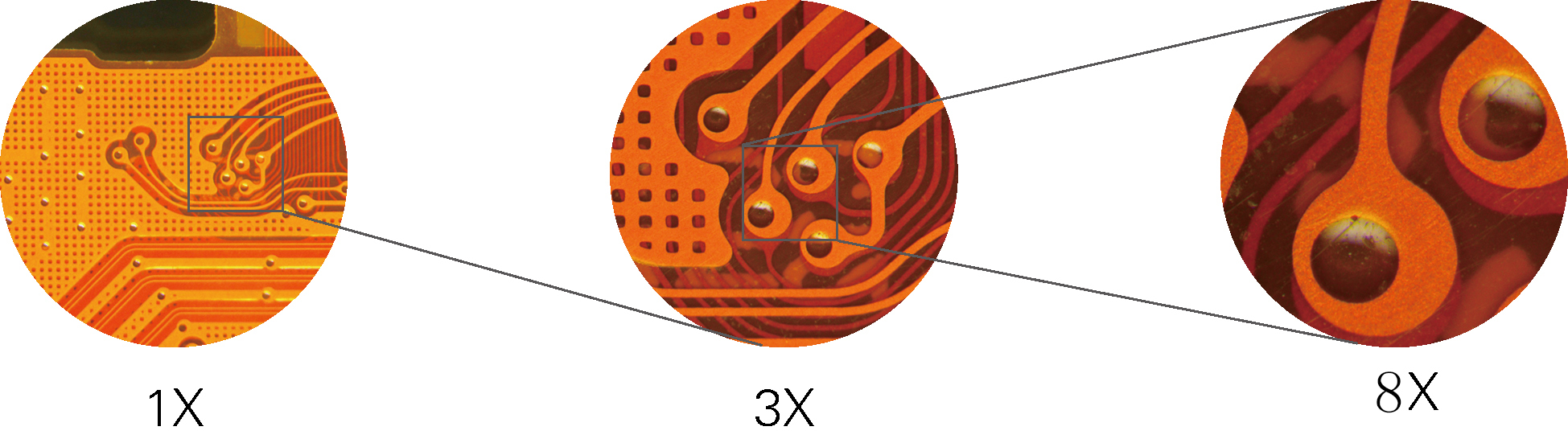

Large zoom ratio 12.5:1
SZX12 has large zoom ratio from 0.63X to 8X, with click stop for every main time, which can be manually unbind for zoom magnifying smoothly.






Apochromatic objective
Apochromatic design significantly improves the lens performanceof color rendition. Correcting the axial chromatic aberration of red/green/blue/purple, and converge them on a focal plane, the objective is able to present the real color of the samples.





Aperture diaphragm adjustment
Shift the aperture diaphragm in front to adjust depth of field for high-quality image.





Humanized light intensity
Rotate the dimmer to adjust light intensity, the detailed percent of brightness will be displayed from the LCD on the base. It is helpful to record data of the best back light for sample observation.





Optional color temperature
Adjust the color temperature to create a perfect imaging background for different samples in different work environment.





Life Science
Support for life science research, meet the demands of biological experiment, chemical analysis and cell culture.



Industry Detection
Indispensable testing tool, widely applied for surface detection of PCB, SMT, semiconductor chip, metal material and precision components.







Viewing head

Tilting trinocular viewing head, 5~45 degree adjustable; binocular: trinocular= 100:0 or 0:100; interpupillary distance 50-76mm; fixed eyepiece tube with lock screw

30 degree inclined trinocular head; binocular: trinocular=50: 50; interpupillary distance 50-76mm; fixed eyepiece tube with lock screw

Eyepiece

High eye-point wide field plan eyepiece PL10X22mm, diopter adjustable

High eye-point wide field plan eyepiece PL15X16mm, diopter adjustable
High eye-point wide field plan eyepiece PL20X12mm, diopter adjustable

Zoom range

Zoom range: 0.63X~8X, zoom ratio: 12.5 : 1; built-in aperture diaphragm; click stop for0.63X、0.8X、1X、1.25X、1.6X、2X、2.5X、3.2X、4X、5X、6.3X、8X

Main objective

1X main objective, working distance 80mm

2X main objective, working distance 20mm

Body

Coarse and fine coaxial focus system, integrated body with focus holder, coarse range: 50mm, fine precision 0.002mm

Base

Plan base without illumination, with black & white plate (dia.100mm)

Plan base with transmitted illumination (work with external 5W LED fiber); built-in 360 degree rotatable mirror, location
adjustable
Ultra-thin base, multi-LED (5W), with digital readout of light intensity and color temperature (3200~5600K)

Illumination

5W LED light box (size: 270X100X130mm) with single fiber (500mm), color temperature 5000-5500K; operating voltage 100-240VAC/50-60Hz, output 12V

LED 环型灯(200 颗)

Camera adapter

0.5X/0.65X/1X C-mount
