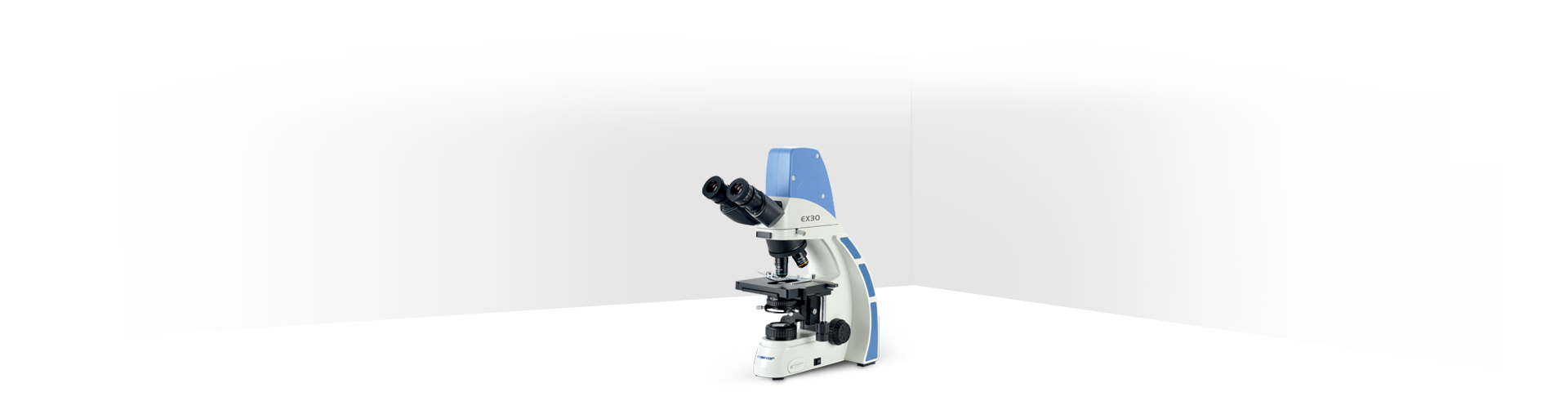

Clinical, laboratory biological microscope, color corrected infinity optical system (CSIS), high resolution and high contrast image.
New design plan wide field of view eyepiece, eliminate edge chromatic aberration.
“Y” configuration body, steady and reliable.
Ergonomics design, low position coaxial focus adjustment, stage movement and illumination adjustment.
Complete accessories, more extension functions, enable various observation, bright-field, dark-field, fluorescence and polarized observations.
|
Optical system |
Infinity achromatic optical system |
|
Observation tube |
30°gemel digital viewing head, 3.2 million pixels high resolution camera system：resolution ratio 2048*1536 pixels ,line by line scan |
|
Automatic exposure and white balance function.USB2.0 digital output. Display 90% image from field of view |
|
|
Eyepiece |
High eye-point widefield plan eyepiece PL10X20mm with ±5 degrees diopter control |
| High eye-point widefield plan eyepiece PL10X22mm with ±5 degrees diopter control | |
|
Objective |
Infinity plan achromatic objective 4X、10X、20X、40XS、100XSO |
|
nosepiece |
Quadruple backward nosepiece |
| Quintuple backward nosepiece | |
|
Focusing adjustment |
Coaxial coarse and fine focusing adjustment with tension and up limited adjustment device. |
| coarse adjustment range: 30mm，fine adjustment precision：0.002mm | |
|
Stage |
Coaxial ,low position mechanical stage in 150x140mm size and 76x50mm travel range.with double damping clips. |
|
Condenser |
Koehler N.A.1.25 condenser(with socket for phase contrast and dark field sliders) |
|
Illuminator |
Main supply 100V-240V,single 3 watt LED lamp with intensity control(fixed center) |
|
Main supply 100V-240V, philips 6V/30W halogen lamp with intensity control(fixed center) |
|
|
Photography adapter |
3.2X photo eyepiece ,photo tube (with PK mount) |
|
Video adapter |
0.35X CTV |
| 0.5X CTV | |
| 1.0X CTV | |
|
Other options |
Turret or slider style phase contrast device（use with the phase contrast objectives） |
| Profesional fluorescence | |
| Dark field sliders | |
| Simple polarization |
