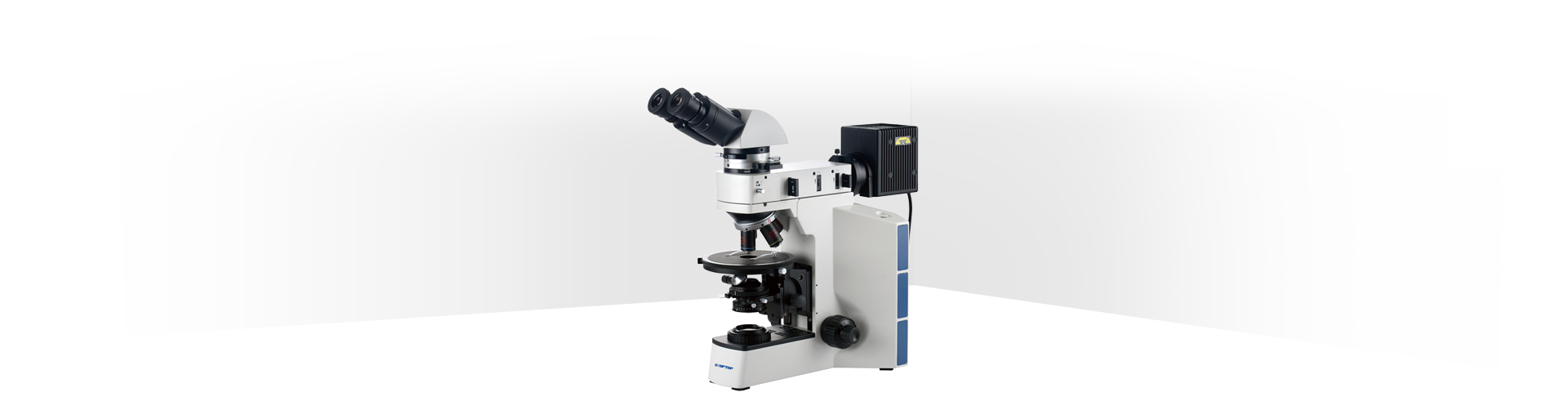

>产品与方案>Industrial Inspection Microscope>Polarizing Microscope
Y shape root structure,high rigidity and high stability.
Building block concept,detachable and flexble.
Special surface processing technics,beautiful and practical.
Optimized illumination system,energy efficiency and environmental protection.
|
Optical system |
Infinity color corrected optical system |
|
Viewing head |
30° inclined gemel binocular head, interpupillary distance 54~75mm, left diopter ±5 adjustable |
| 30° inclined gemel trinocular head, interpupillary distance 54~75mm, left diopter ±5 adjustable, splitting ratio R:T=100:0or 50:50 | |
| 30°~60° tilting binocular head, interpupillary distance 54~75mm, left diopter ±5 adjustable | |
|
Eyepiece |
High eye-point wide field plan eyepiece PL10X22mm |
| High eye-point wide field plan eyepiece PL10X22mm, with reticle | |
| High eye-point wide field plan eyepiece PL15X16mm | |
|
Objective |
LWD plan destressing objective 5X/10X/20X/50X |
| Plan destressing objective 4X/10X/20X/40X/60X | |
|
Intermediate tube |
With removable internal Bertrand lens, analyzer and compensators. Bertrand lens with totating switch, centerable, focusing recyclable. |
|
Analyzer |
Pluggable analyzer, 360°rotatable, 2°increments, precision 6′, with locking device |
|
Compensator |
Gyps 1λ （Φ18mm,optical path difference 551nm） |
| Mical 1/4λ (Φ18mm,optical path difference 147.3nm) | |
| Quartz Wedge(Ⅰ-Ⅳ) | |
|
Nosepiece |
Revolving centerable quadruple nosepiece |
| Revolving centerable quintuple nosepiece | |
|
Focus adjustment |
Transmitted frame/ Transmitted & Reflected frame/ Reflected frame; Coarse focus system with upper limited and tension adjustment, coarse range: 30mm, fine precision 0.002mm |
|
Stage |
Dia.160mm circular metal stage, graphite coating, anti-corrosive and anti-friction, 360° rotatable, 1° increment, precision 6′ |
|
Condenser |
Swing-out achromatic condenser(N.A. 1.2), with 360° rotatable polarizer, four adjustable scale: 0/90/180/270 |
|
Reflected illumination |
Wide-range voltage 100V-240V_AC50/60Hz, 12V/50W halogen lamp house, imported bulb, center presetting, reflected illuminator with LBD filter and pluggable polarizer, field diaphragm and aperture diaphragm adjustable |
|
Transmitted illumination |
Koehler illumination, wide-range voltage 100V-240V_AC50/60Hz. 12V/50W halogen lamp house, imported bulb, center presetting, with iris diaphragm |
|
Others |
Yellow/neutral/IF550/LBD filter for transmitted light |
| Digital camera adapters: 1X, 2/3, 1/2 focusing C-mount; 3.2X photo eyepiece; photo tube with PK or MD mount; camera relay lens | |
| Mechanical stage, moving range: 30mm*40mm | |
| High precision micrometer, 0.01mm increment |
