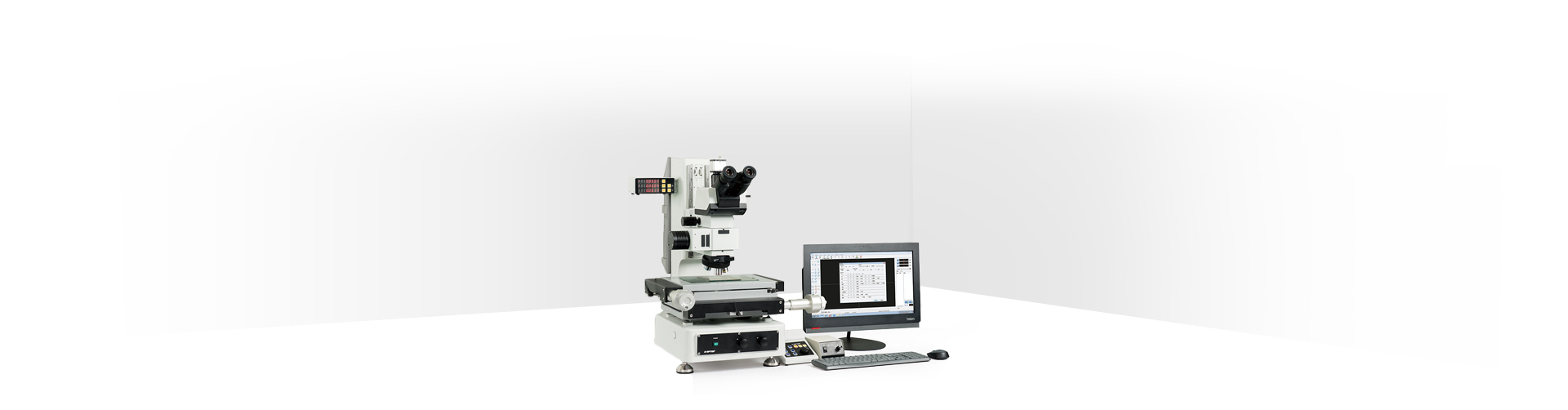

Outstanding optical technology for excellent imaging
Professional and advanced technology is essential to research and development. Superior infinity optical system, working with semi apochromatic objectives, presents a sharp image with high contrast and clarity. With simple accessories, different performance such as dark field, polarizing, DIC is available.
Ergonomics design realizes the comfortable operation
Working efficiency and speed are mainly effected by the tool operability. All design based on ergonomics, reduces the fatigue caused by hard work. Welcome to experience MS measuring system.
Precision measurement ensures data accuracy
Good measuring tool represents a brand value. With the development of manufacturing technology for miniaturization and precision, high accurate measurement is more and more important. MS series adopts 3 axises measuring system with 0.1um precision. X/Y axises manual operation and Z axis electric focusing with high accurate grating scales, is easy for operate without fatigue.
Independent focus assist of split image
The light controller of split image is independent. Light intensity is able to be adjusted according to different samples. Two patterns of split image for option, support for free switch.
Self-designed measuring software
It is available to set up the customer preference by the powerful software. High-precision measurement is achievable for the complicated shapes.
Application case
|
Optical system |
Infinity optical system |
|
Viewing head |
30 degree inclined trinocular head (erect image); interpupillary distance: 50~76mm; splitting ratio: 100:0 or 0:100. |
| 5~35 degree tilting trinocular head (erect image); interpupillary distance: 50-76mm; splitting ratio: 100:0 or 0:100. | |
| 30 degree trinocular head (inverted image); interpupillary distance: 50-76mm; splitting ratio: 100:0 or 50:50. | |
|
Eyepiece |
High eye point wide field plan eyepiece PL10X/22mm, reticle attachable. |
| High eye point wide field plan eyepiece PL10X/22mm, with adjustable diopter, reticle attachable. | |
|
Nosepiece |
Quintuple nosepiece |
| BD quintuple nosepiece | |
|
Objective |
Long working distance plan achromatic metallurgical DIC objective 5X/10X. |
| Super long working distance plan semi apochromatic metallurgical DIC objective 20X. | |
| Long working distance plan achromatic metallurgical objective 50X/100X. | |
| Long working distance BD plan achromatic metallurgical DIC objective 5X/10X. | |
| Super long working distance BD plan semi apochromatic metallurgical DIC objective 20X. | |
| Long working distance BD plan achromatic metallurgical objective 50X/100X. | |
|
Magnification |
Optical magnification: 50X~1000X |
| System magnification: 135X~2700X | |
|
Stage |
Manual stage, moving range: 200mm(X) x 100mm(Y), measuring precision: X/Y (2+L/200)um, Z (3+L/200)um; with digitalindicator and control box for electric focusing; support for 175mm as the highest. |
| Manual stage, moving range: 300mm(X) x 200mm(Y), measuring precision: X/Y (2+L/200)um, Z (3+L/200)um; with digital indicator and control box for electric focusing; support for 175mm as the highest. | |
|
Illumination |
Reflected illuminator with shifter for bright and dark field; with slots for filters and polarizing kit; 5W LED (green),intensity adjustable. |
| Focus assist, with double reticle; 5W LED (green), 100V-240V | |
|
Focus |
Electric hand wheel, focusing distance: 175mm |
|
Camera |
Color CMOS camera, 1.3 mega pixels, 1280 (H) x 1024 (V); 30fps; USB2.0 |
|
Adapter |
0.65X C-mount adapter |
| 0.5X C-mount adapter | |
|
PC |
LENOVO Think Centre |
| Software | Measuring software |
| Accessory | Polarizer, 360 degree rotatable analyzer, interference filters, high precision micrometer, DIC, calibrater |
