>产品与方案>Optical Lens Sets>CCTV Lens
| P/N | Sensor Size | Resolution | FNO |
Focal Length( mm ) |
FOV ( D ) | TTL (mm) | Mount | ||||
|
SYC7076A |
1/1.8" | 6MP | 2.6 |
1.28 |
180° | 34.9 | M12 | ||||
| SYC7205 | 1/4" | 1.3MP | 2.0 |
2.6 |
110° | 22.2 | M12 | ||||
|
SYC7107 |
1/4" | 1.3MP | 2.0 |
2.6 |
109° | 17.2 | M12 | ||||

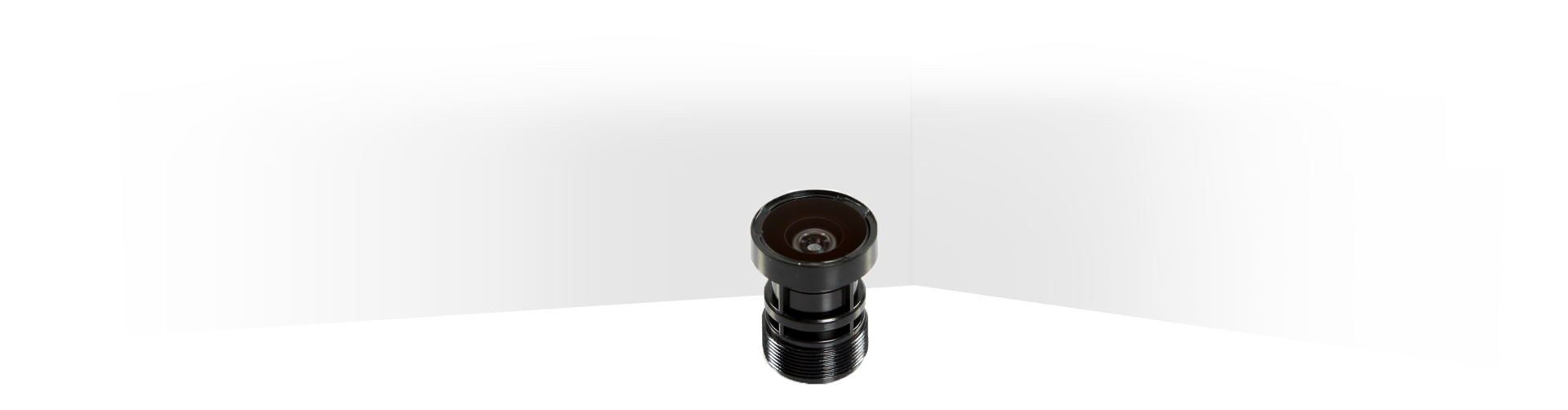

| SYC7070A | 1/2.7" | 3MP | 2.0 |
3 |
141.2° | 22.7 | M12 | ||||
| SYC7127 | 1/2.7" | 2MP | 1.6 |
3 |
135° | 22.15 | M12 | ||||
| SYC7091 | 1/2.7" | 5MP | 2.0 | 3.16 | 135° | 22.5 | M12 | ||||
|
SYC7071 |
1/4" | 1.3MP | 2.4 |
3.3 |
76.3° | 7.88 | M12 | ||||
| SYC7086 | 1/3" | 1.3MP | 2.4 |
3.3 |
91° | 12.3 | M12 | ||||
|

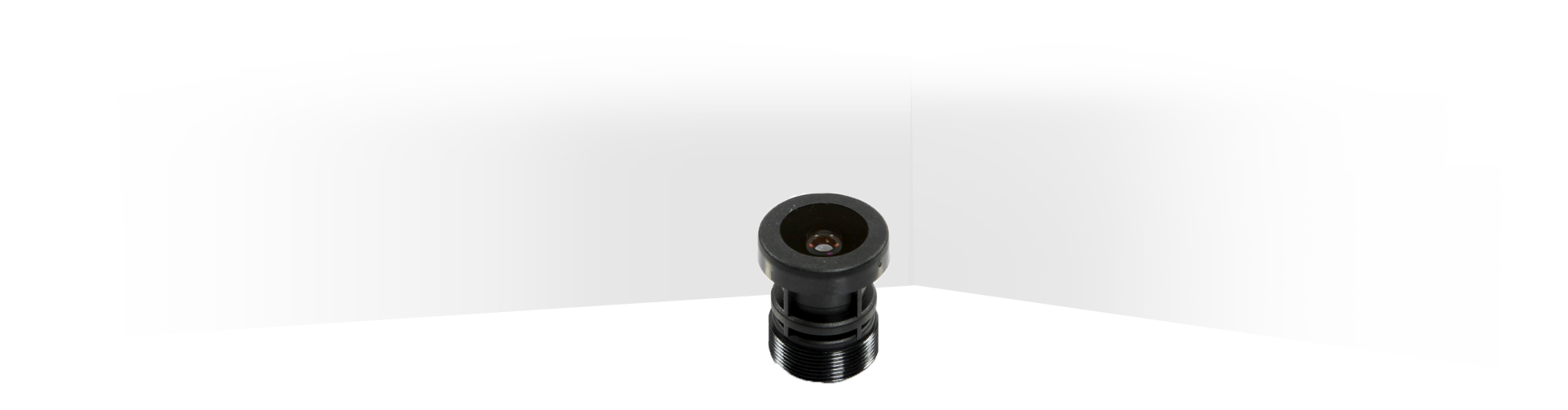

SYC7063A |
1/2.7" | 3MP | 2.0 |
4 |
106° | 23 | M12 | ||||
| SYC7073 | 1/2.7" | 3MP | 2.0 |
4 |
89.6° | 22.5 | M12 | ||||
| SYC7087 | 1/3" | 1.3MP | 2.5 |
4.3 |
101° | 12.3 | M12 | ||||

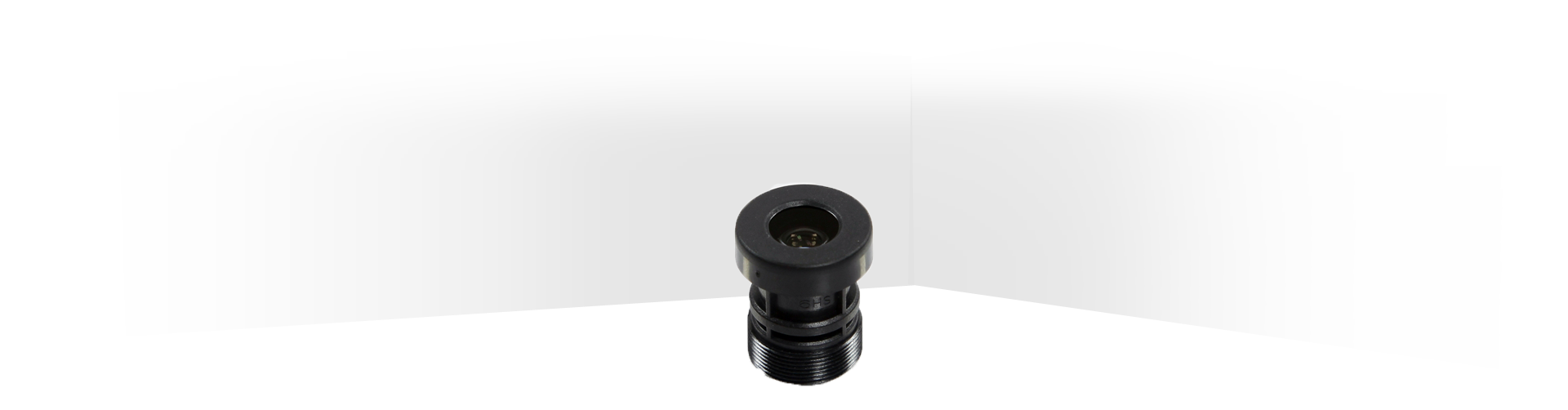

| SYC7057A | 1/2.7" | 3MP | 2.0 | 6 | 70.2° | 22.7 | M12 | ||||
| SYC7078A | 1/2.7" | 3MP | 2.0 |
8 |
47.6° | 21.1 | M12 | ||||

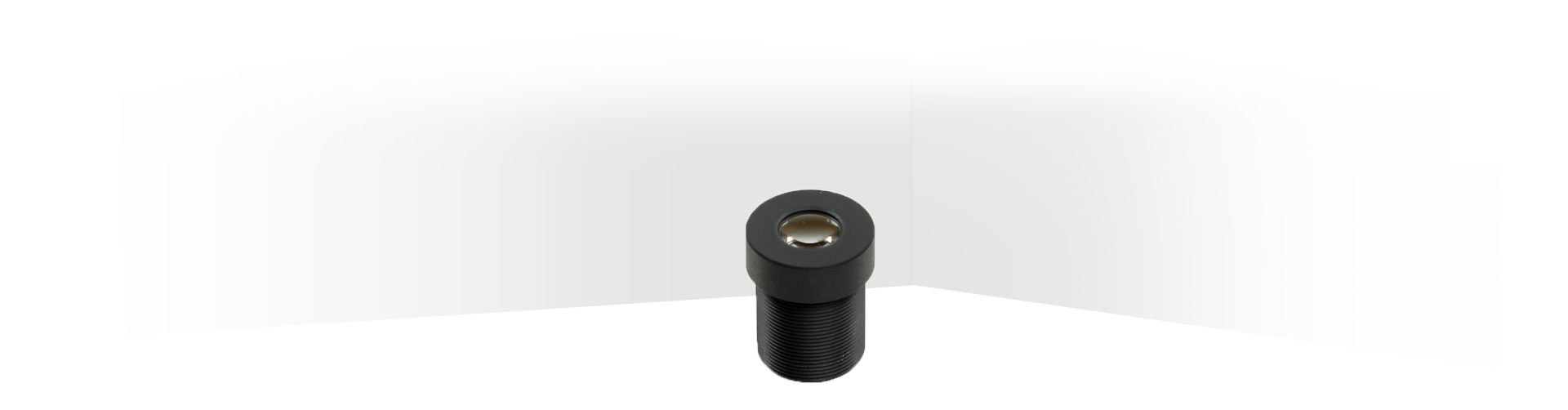

| SYC7045A | 1/2.7" | 3MP | 2.0 | 12 | 30.5° | 22.0 | M12 | ||||
| SYC7074A | 1/2.7" | 3MP | 2.0 |
16 |
23.6° | 22.2 | M12 | ||||
| SYC7099 | 1/2.7" | 5MP | 2.0 | 2 | 140° | 19.8 | M12 | ||||
| SYC7096D | 1/4" | 1.3MP | 2.0 |
3 |
83.5° | 22.1 | M12 | ||||
| SYC7097 | 1/2.7" | 5MP | 2.0 | 4 | 90° | 22.4 | M12 | ||||
| SYC7109 | 1/2.5" | 8MP | 2.0 |
5 |
95° | 22.13 | M12 | ||||
| SYC7100 | 1/2.7" | 5MP | 2.0 | 6 | 67° | 22.2 | M12 | ||||
| SYC7113 | 1/2.5" | 8MP | 2.0 |
7.3 |
59° | 22.13 | M12 | ||||
